Arduino Home Automation 9 Channel Version
This is part of the Arduino Home Automation wich i build and have posted a video on youtube.
First of all the schematic.
It was hard for me to make a schematic on fritzing or anythign else cuz there were a lot of wire
and u could understand anything so i decided to not to do it with a image but to make it into a text wich is pretty easy to understand.
The bluetooth module connects to the arduino via the RX/TX pins.
Basically the Rx of the bluetooth connects to the Tx of the arduino
and the Tx of the bluetooth connects to the Rx of the arduino.
The arduino puts a negative output so the led's positive will have to
be wired in parallel and the negative of the led with be turned on or off
So basically all the digital pins of the arduino are outputs beside
pin 11,12,13 only those pins are not used but in the future i will
use those pins and make a 12 channel version one.
Arduino code: http://goo.gl/E7vXth
Android App: http://goo.gl/JH7Ns0
Ps:Sry for no IOS version but its not that easy to create a app for IOS.
Tuesday, November 25, 2014
Wednesday, September 10, 2014
Arduino Home Automation
Hello
Today i thought i would share with u this project
its fairly easy and dosnt use much parts its the Arduino Home Automation.
Parts needed.
Arduino(any)
Bluetooth module
2 CH Relay
Breadboard
and some jumpers.

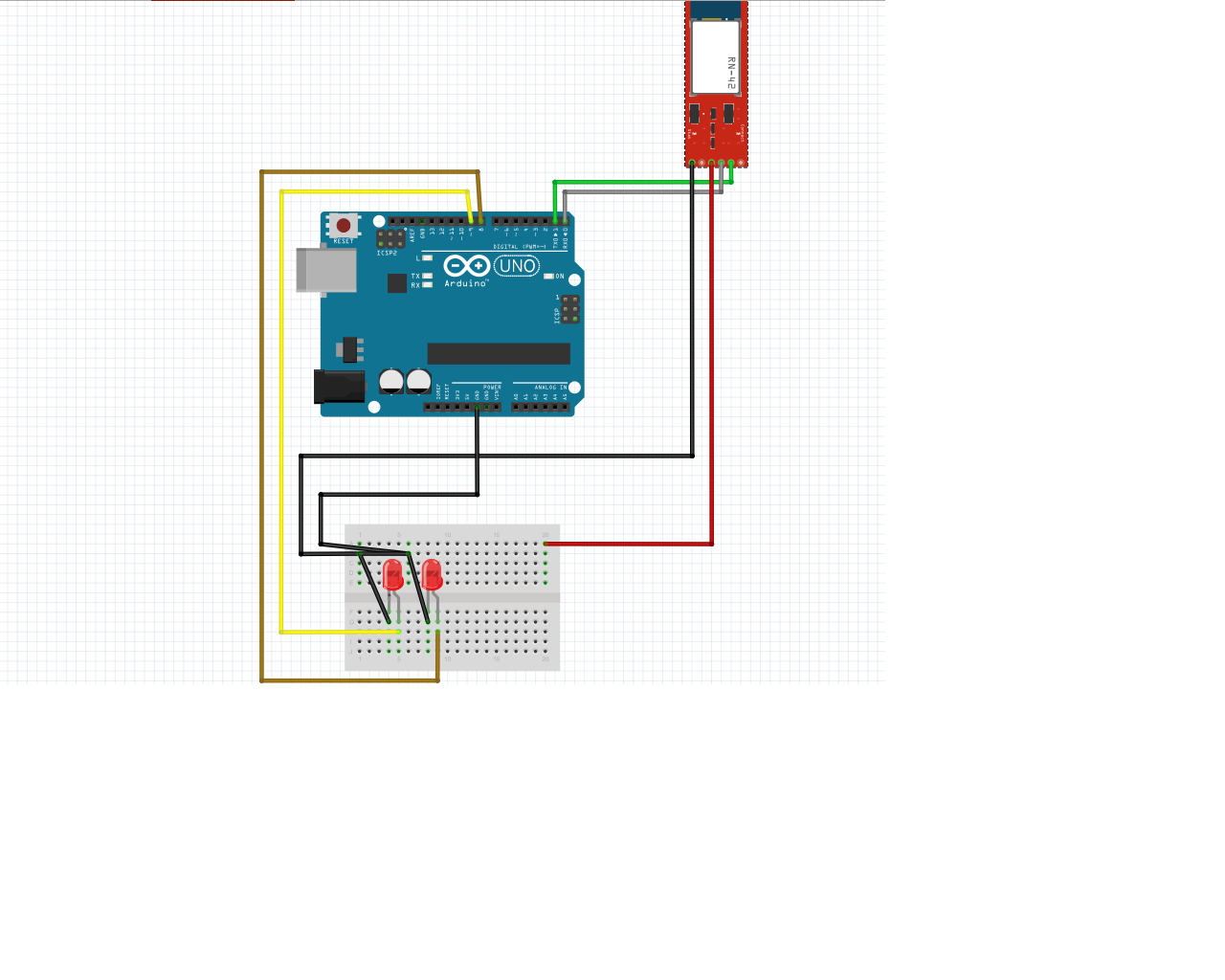

Sorry i am demostrating this with LED but Fritzing didnt had any 2 CH rRelay module.
But yeah it works
Arduino Bluetooth
1(TX) RX
0(RX) TX
GRD GRD
5V 5V (VCC)
1 Channel Relay
5V VCC
GRD GRD
Pin 7 IN 1
Pin 8 IN 2
Code for arduino can be found here:http://goo.gl/aOzrYt
Android App:http://goo.gl/Kmpwvu
Video demonstrating
Today i thought i would share with u this project
its fairly easy and dosnt use much parts its the Arduino Home Automation.
Parts needed.
Arduino(any)
Bluetooth module
2 CH Relay
Breadboard
and some jumpers.
Sorry i am demostrating this with LED but Fritzing didnt had any 2 CH rRelay module.
But yeah it works
Arduino Bluetooth
1(TX) RX
0(RX) TX
GRD GRD
5V 5V (VCC)
1 Channel Relay
5V VCC
GRD GRD
Pin 7 IN 1
Pin 8 IN 2
Code for arduino can be found here:http://goo.gl/aOzrYt
Android App:http://goo.gl/Kmpwvu
Video demonstrating
